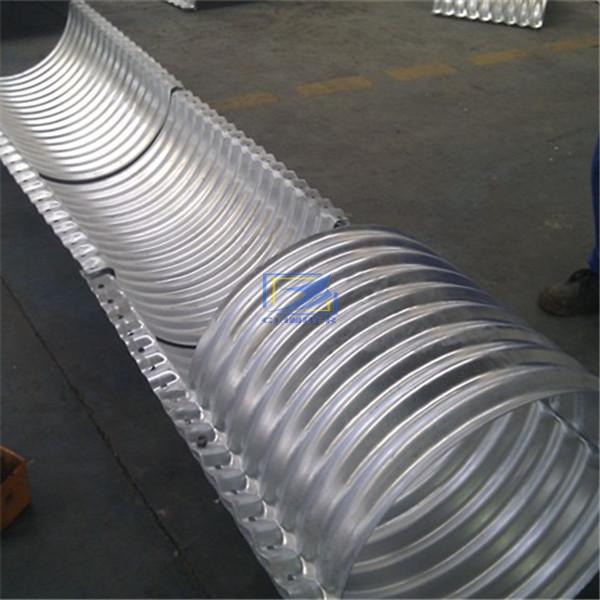

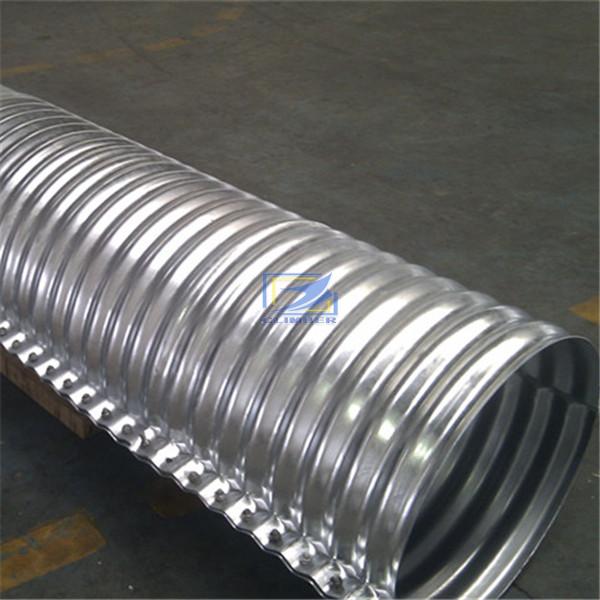

Flanged Nestable Corrugated Steel Pipe consists of half-round sections of corrugated steel pipe(CSP) with external side flanges that are easily bolted together to form a circular CSP. Originally developed in the early 1930’s to facilitate overseas shipping, sections can be nested into compact, easy-to-handle bundles allowing for economical transportation for long-haul distances, remote sites, or international destinations.

Flanged Nestable Corrugated Steel Pipe  consists of half-round sections of corrugated steel pipe with external side flanges that are easily bolted together to form a circular corrugated steel pipe.  It is developed in the early 1930’s to facilitate overseas shipping, sections can be nested into compact, easy-to-handle bundles allowing for economical transportation for long-haul distances, remote sites, or international destinations.



The steel corrugated sections are Galvanized (Z610) or , with corrugation profile of 68 x 13mm.,  The corrugated sheets are fabricated in standard lengths with an effective laying of 1088mm, with half-lengthed sections of 544 mm.  The sheets are available in various thicknessess, including 1.6mm, 2.0mm, 2.5mm and 3.0mm to meet most structural design requirements.

Diameter  (mm) Filling height and correspondent Thickness

0.6m 0.7m 0.8m 0.9m 1m 2m 3m 5m 7m 9m 10m 13m
400 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
500 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
600 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
700 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
800 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
900 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
1000 3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50 3.00
1100 3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50 3.00
1200   3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.50 3.00 3.00
1300   3.00 2.50 2.50 2.00 2.00 2.00 2.50 2.50 3.00 3.00
1400     3.00 2.50 2.50 2.50 2.50 2.50 3.00 3.00
1500     3.00 2.50 2.50 2.50 2.50 3.00 3.00
1600     3.00 3.00 2.50 2.50 2.50 3.00 3.00
1700       3.00 3.00 3.00 3.00 3.00
1800         3.00 3.00 3.00 3.00
