Introduction
A hot galvanized corrugated metal culvert pipe for drainage is a proven and cost-effective solution widely used in infrastructure, transportation, and water management projects. Designed for high load-bearing capacity, long service life, and excellent corrosion resistance, corrugated metal culvert pipes have become a preferred choice for culverts, stormwater drainage, small bridges, and underground passages around the world.
Manufactured from high-quality carbon steel and protected by hot-dip galvanizing, these pipes perform reliably even in harsh environments, making them ideal for both municipal and industrial drainage systems.
What Is a Hot Galvanized Corrugated Metal Culvert Pipe?
A corrugated metal culvert pipe is made from carbon steel plates that are formed with circumferential corrugations and assembled into a pipe or arch structure. The corrugation profile significantly enhances structural strength, allowing the pipe to withstand heavy earth loads and traffic loads.
To prevent corrosion and extend service life, the steel plates are treated with hot-dip galvanization, typically with a zinc coating ranging from 610 g/m² up to 1200 g/m², depending on project requirements. For enhanced protection, bitumen coating can also be applied during assembly.
Technical Specifications
| Material | Carbon steel (Q235B / Q345B, similar to S235JR / S355JR) |
| Steel Plate Thickness | 5.0 mm – 10.0 mm |
| Pipe Diameter | 4000 mm – 15000 mm |

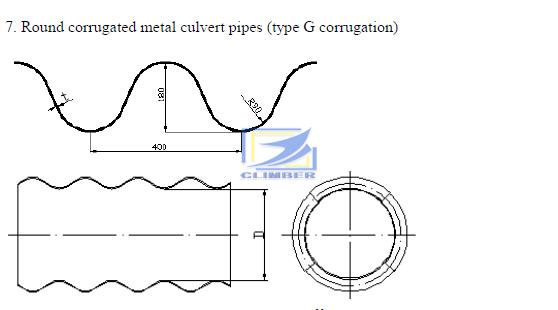

| Corrugation Profile | 400 mm × 180 mm |
| Surface Treatment | Hot-dip galvanized zinc ≥610 g/m² (up to 1200 g/m²) |
| Assembly Type | Annular flanged / Nestable |
| Depth of Fill | 1.5 – 60 m |
| Standard | JTT 791-2010, AASHTO M36 |
| Design Life | Over 70 years |
Key Advantages of Hot Galvanized Corrugated Metal Culvert Pipes
1. Excellent Load-Bearing Capacity
The corrugated structure distributes stress evenly across the pipe wall, enabling the culvert to support deep backfill and heavy vehicle loads. With a fill depth capacity of 1.5 to 60 meters, these pipes are suitable for highways, railways, and industrial roads.
2. Superior Corrosion Resistance
Hot-dip galvanized corrugated metal culvert pipes provide long-term resistance against moisture, soil chemicals, and environmental corrosion. Zinc coatings of ≥610 g/m² ensure a service life of more than 70 years, even in aggressive environments.
3. Flexible Design and Customization
Available in multiple shapes such as round, arch, oval, half-round, and customized profiles, corrugated steel culvert pipes can adapt to various site conditions. Diameters can range from 4000 mm to 15000 mm, meeting diverse engineering needs.
4. Easy Transportation and Installation
Corrugated metal culvert pipes are produced in modular segments, allowing for easy container loading and overseas shipping. Assembly methods such as annular flanged or nestable connections reduce installation time and labor costs on site.
5. Cost-Effective Drainage Solution
Compared with concrete culverts, galvanized corrugated steel culverts offer lower transportation costs, faster installation, and reduced maintenance expenses, making them a highly economical drainage solution.

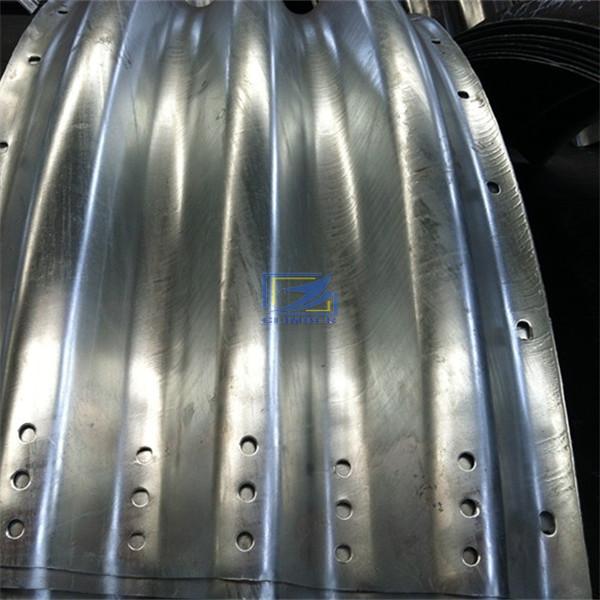

Our raw material of the corrugated steel culvert pipe

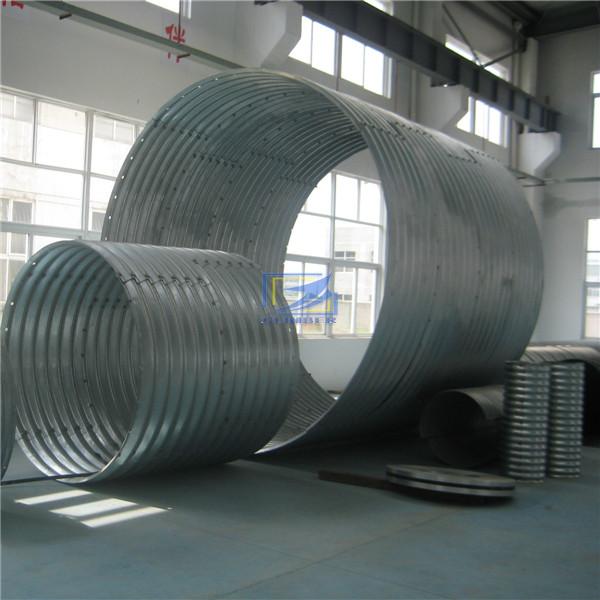

Our semi-finished corrugated steel culvert
Applications of Corrugated Metal Culvert Pipes for Drainage
Hot galvanized corrugated metal culvert pipes are widely used in:
Road and highway drainage systems
Stormwater and rainwater drainage
Storm sewers and flood control projects
Railway culverts and underpasses
Small bridges and pedestrian passages
Plate liners and underground channels
Their adaptability makes them suitable for urban infrastructure, rural roads, mining projects, and agricultural drainage.
Why Choose Qingdao Regions Trading (Qingdao Climber)?
With over 10 years of experience in supplying corrugated steel culvert solutions for overseas markets, Qingdao Regions Trading Co., Ltd (Qingdao Climber) is a trusted manufacturer and exporter.
Company Strengths
Monthly production capacity of approximately 1500 tons
Strict quality control from raw material to finished products
Customizable specifications for different engineering requirements
Fast response to inquiries within 24 hours
Professional full-process service from design support to shipment
Global Market & Logistics
Qingdao Climber has successfully supplied hot galvanized corrugated metal culvert pipes to many countries, including Mongolia, India, Malaysia, Ethiopia, Kenya, Australia, Papua New Guinea, Bolivia, and more. Modular production enables efficient shipping to any port worldwide, with door-to-door delivery available in selected regions.
The corrugated steel culvert pipe in stock
The corrugated steel culvert pipe in the container for shipping
Conclusion
A hot galvanized corrugated metal culvert pipe for drainage is a durable, flexible, and economical solution for modern infrastructure projects. With high load capacity, long service life, and customizable design, it meets the demanding requirements of global drainage and culvert applications.
By choosing a professional manufacturer like Qingdao Climber, customers benefit from reliable quality, international standards compliance, and expert support throughout the project lifecycle—ensuring safe, efficient, and long-lasting drainage systems.
Please contact us for more information.
