Corrugated metal pipe(corrugation 380X140mm)

corrugated metal culvert pipe with a deep corrugation

Corrugated metal culvert pipes are made of carbon steel. Steel pipes with circumferential corrugation have high load bearing capacity. Culverts built with this kind of pipe segments are called corrugated steel culverts. To prevent corrosion, corrugated metal culvert pipes are usually made of galvanized carbon steel usually with a zinc coating range from 275g/m2 to 1200g/m2, which is still changeable and subject to customers’ requirements.


Corrugated metal culvert pipe is assembly by corrugated steel structural plate (SSP) which is shipped to the site in curved plates and field assembled into its final shape by bolting. When spans exceed 3meter, SSP quickly becomes the best corrugated steel option. Without shipment limitations associated with large conventional pipe, combined with increased thicknesses (through 1 gage) and stiffer corrugations, SSP expands the number of useful applications otherwise unattainable, and allows corrugated steel to be a viable alternative to the one or two options historically available in certain situations.

Diameter (m) The Thickness(mm)and correspondent Limited Filling height(m)
3 4 5 6 7 8 9 10
4 12.87 17.17 21.46 25.76 30.06 34.35 38.65 42.94
4.5 11.44 15.26 19.08 22.90 26.71 30.53 34.35 38.17
5 10.30 13.73 17.17 20.61 24.04 27.48 30.92 34.35
5.5 9.36 12.48 15.61 18.73 21.86 24.98 28.10 31.23
6 8.58 11.44 14.31 17.17 20.03 22.90 25.76 28.62
7 7.35 9.81 12.26 14.71 17.17 19.62 22.08 24.53
8 6.43 8.58 10.73 12.87 15.02 17.17 19.32 21.46
9 5.71 7.62 9.53 11.44 13.35 15.26 17.17 19.08
10 5.14 6.86 8.58 10.30 12.01 13.73 15.45 17.17
11 4.67 6.23 7.80 9.36 10.92 12.48 14.05 15.61
12 4.28 5.71 7.15 8.58 10.01 11.44 12.87 14.31
13 3.95 5.27 6.60 7.92 9.24 10.56 11.88 13.20
14 3.67 4.90 6.12 7.35 8.58 9.81 11.03 12.26
15 3.42 4.57 5.71 6.86 8.01 9.15 10.30 11.44

Our raw material of the corrugated steel culvert pipe

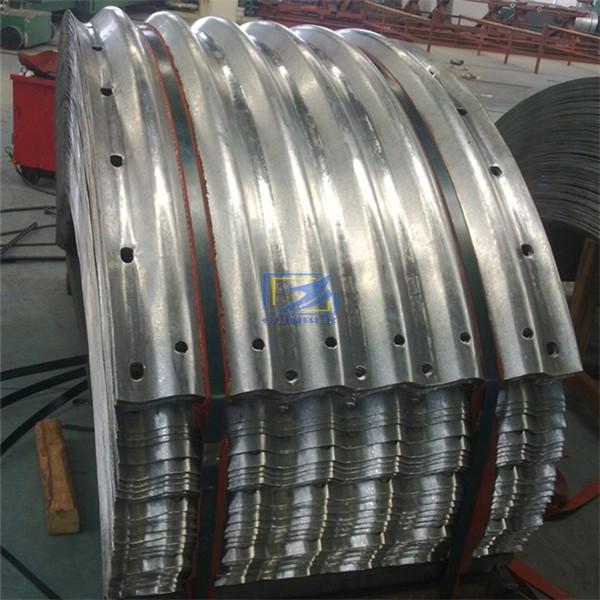

Our semi-finished corrugated steel culvert

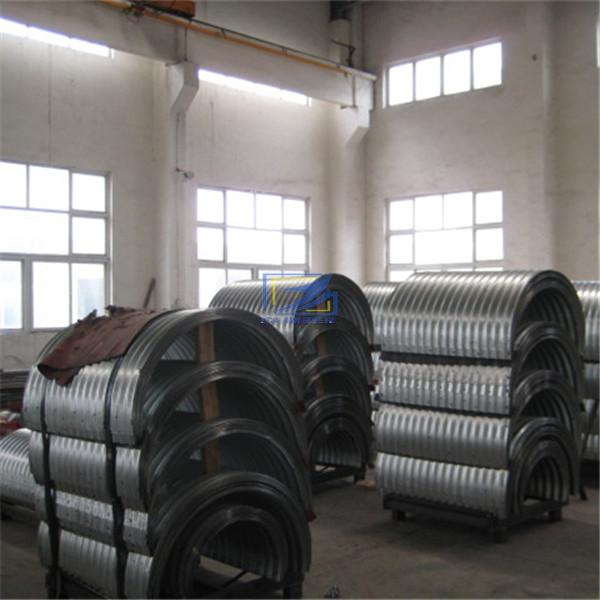

The corrugated steel culvert pipe in stock




The corrugated steel culvert pipe in the container for shipping
