corrugated steel culvert pipe is composed of two half round segments which are bolted together to form a round pipe. There two standard method to form a round pipe. flanged nestable corrugated steel pipe and overlapped corrugated steel pipe. It suitable for the small diameter pipe and easy to ship to the oversea marktert.

corrugated steel pipe is composed of two half round segments which are bolted together to form a round pipe. There two standard method to form a round pipe. flanged nestable corrugated steel pipe and overlapped corrugated steel pipe. It suitable for the small diameter pipe and easy to ship to the oversea marktert

.Technical Specs:

1.Material of steel plate: Q235 steel plate

2.Thickness of steel plate:1.5mm-3mm

3.Shape:  Round, Half

4 Assembly:Annular flanged/Nestable

5 Depth of fill: 1.5-60m

6.Pipe Diameter: 400mm-3000mm

7.Corrugation: 68*13,125*25,150*50,

8.Antiseptic treatment: hot dip galvanized zinc ≥610g/m2.

9.Service life more than 70 years.

10:.Standard: JTT 791-2010 ,or AASHTO M36.

11.Application: storm water pipe,Traditional Culverts ,Reline and Rehabilitation Solutions,Arch Bridges,Grade Separations,Wildlife Crossings,Pedestrian Underpasses,Stockpile Tunnels,Utilidors Conveyors Enclosures and many other applications



Diameter  (mm) Filling height and correspondent Thickness

0.6m 0.7m 0.8m 0.9m 1m 2m 3m 5m 7m 9m 10m 13m
400 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
500 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
600 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
700 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
800 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
900 2.50 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50
1000 3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50 3.00
1100 3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.50 3.00
1200   3.00 2.50 2.00 2.00 2.00 2.00 2.00 2.50 3.00 3.00
1300   3.00 2.50 2.50 2.00 2.00 2.00 2.50 2.50 3.00 3.00
1400     3.00 2.50 2.50 2.50 2.50 2.50 3.00 3.00
1500     3.00 2.50 2.50 2.50 2.50 3.00 3.00
1600     3.00 3.00 2.50 2.50 2.50 3.00 3.00
1700       3.00 3.00 3.00 3.00 3.00
1800         3.00 3.00 3.00 3.00

Our raw material of the corrugated steel culvert pipe

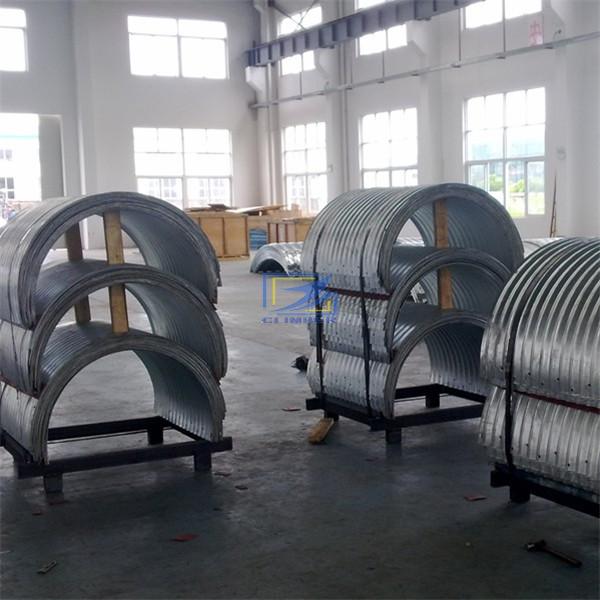

Our semi-finished corrugated steel culvert

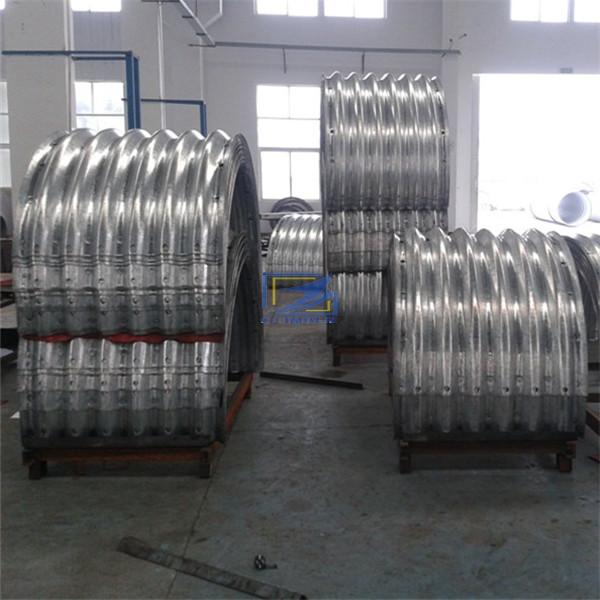

The corrugated steel culvert pipe in stock




The corrugated steel culvert pipe in the container for shipping
