AASHTO M36 standard corrugated steel culvert pipe have a quality similar to ARMCO culvert

AASHTO M36 standard corrugated steel culvert pipe have a quality similar to ARMCO culvert
AASHTO M36 standard corrugated steel culvert pipe have a quality similar to ARMCO culvert
Corrugated Steel culvert are made of carbon steel. Steel pipes with circumferential corrugation have high load bearing capacity. Culverts built with this kind of pipe segments are called corrugated steel culverts. To prevent corrosion, corrugated metal culvert pipes are usually made of galvanized carbon steel usually with a zinc coating range from 275g/m2 to 1200g/m2, which is still changeable and subject to customers’ requirements.
Corrugated Steel culvert are made of carbon steel. Steel pipes with circumferential corrugation have high load bearing capacity. Culverts built with this kind of pipe segments are called corrugated steel culverts. To prevent corrosion, corrugated metal culvert pipes are usually made of galvanized carbon steel usually with a zinc coating range from 275g/m2 to 1200g/m2, which is still changeable and subject to customers’ requirements.

 Technical Specs:
1.Material of steel plate: Q235 steel plate

2.Thickness of steel plate:1.5mm-8mm

3.Shape:  Round, Half, Arch,Oval ect.

4 Assembly:Annular flanged/Nestable

5 Depth of fill: 1.5-60m

6.Pipe Diameter: 300mm-9000mm

7.Corrugation: 68*13,100*20,150*50,200*55, 380*140,300*110 ,400*150

8.Antiseptic treatment: hot dip galvanized zinc ≥610g/m2.

9.Service life more than 70 years.

10:.Standard: JTT 791-2010 ,or AASHTO M36.

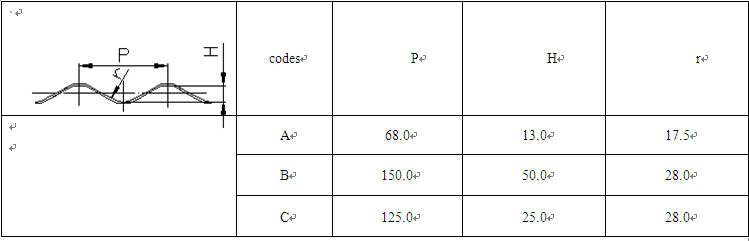

The table show the corrugated profile

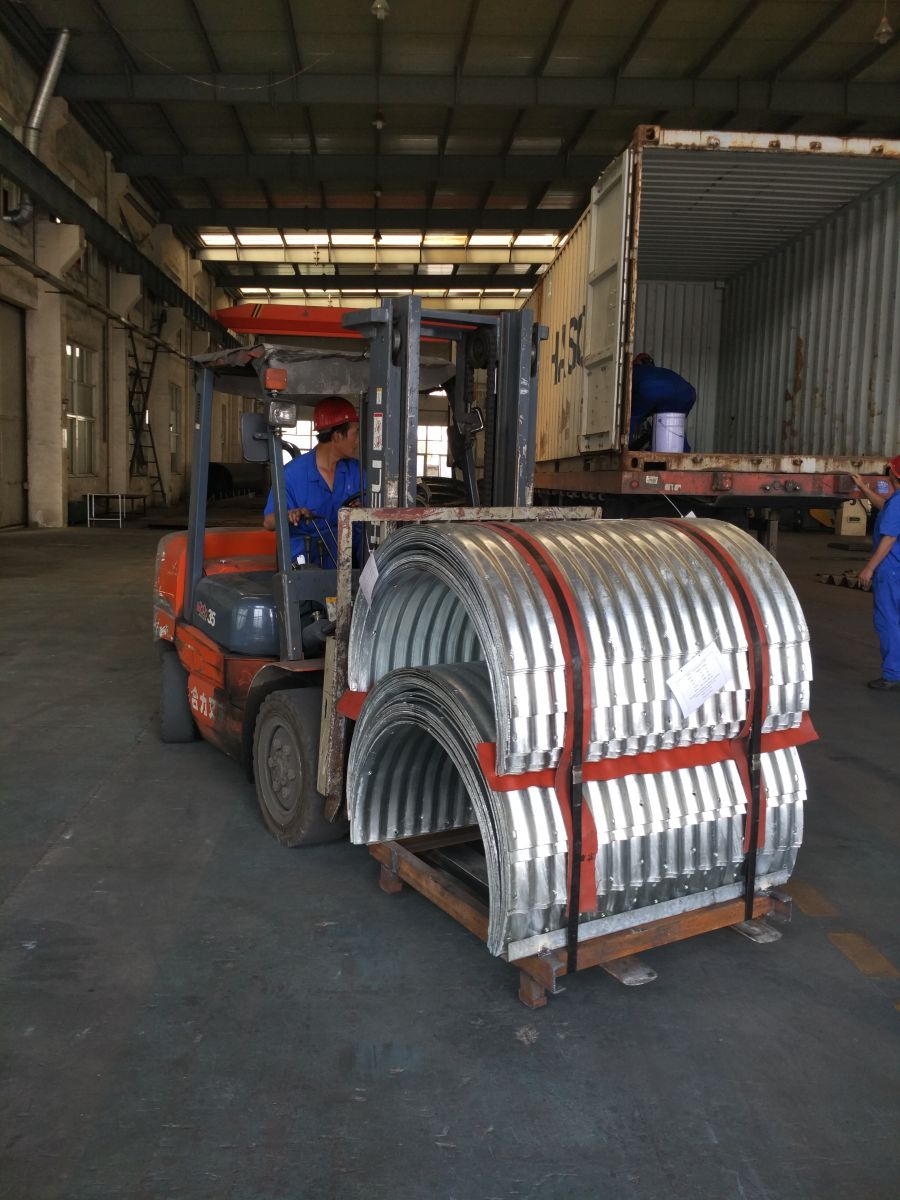

Loading the corrugated steel culvert into the containers
